Virtual Background

Introduction

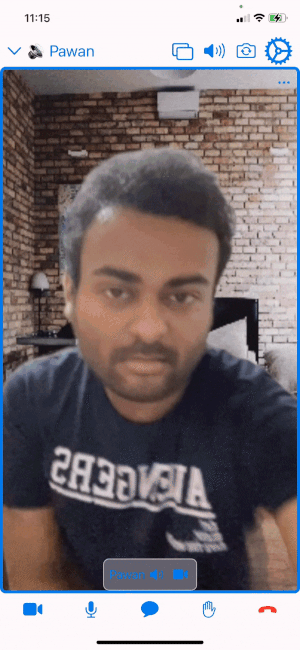

Virtual Background plugin helps in customising one’s background by replacing the background with a static image or blurring the background. This guide provides an overview of usage of the Virtual Background plugin of 100ms.

VirtualBackground

Minimum Requirements

  • Minimum iOS version required to support Virtual Background plugin is iOS 15
  • Minimum 100ms SDK version required is 0.3.1
  • Virtual background plugin may have performance issues on iPhone X, 8, 7, 6 and other older devices. We recommend that you use this feature on a high performance device for smooth experience.

How to enable virtual background in your app using HMSSDK

  1. Create an HMSVideoPlugin array
var videoPlugins = [HMSVideoPlugin]()
  1. Create an instance of HMSVirtualBackgroundPlugin and append it to videoPlugins array, like below
let virtualBackgroundPlugin = HMSVirtualBackgroundPlugin(backgroundImage: UIImage(named: "VB1")) videoPlugins.append(virtualBackgroundPlugin)
  1. Next, create an instance of HMSVideoTrackSettings passing videoPlugins array
let videoSettings = HMSVideoTrackSettings(... videoPlugins: self.videoPlugins)
  1. Use this videoSettings instance while setting the trackSettings on HMSSDK
hmsSDK = HMSSDK.build { sdk in sdk.trackSettings = HMSTrackSettings(videoSettings: videoSettings, audioSettings: ...) ... }

That is all you need to do to enable virtual background!

How to enable and disable virtual background

Hold on to a reference to the instance of HMSVirtualBackgroundPlugin and use activate and deactivate functions on it to enable/disable the virtual background.

var virtualBackgroundPlugin: HMSVideoPlugin? func setupPlugins() { virtualBackgroundPlugin = HMSVirtualBackgroundPlugin(backgroundImage: UIImage(named: "VB1")) ... } func toggleVB() { let isVBActivated = UserDefaults.standard.bool(forKey: "virtualBackgroundPluginEnabled") if isVBActivated { self?.interactor.virtualBackgroundPlugin?.deactivate() UserDefaults.standard.set(false, forKey: "virtualBackgroundPluginEnabled") } else { _ = self?.interactor.virtualBackgroundPlugin?.activate() UserDefaults.standard.set(true, forKey: "virtualBackgroundPluginEnabled") } }

How to blur background instead of replacing it with an image

If you pass nil as the backgroudImage parameter while initilising HMSVirtualBackgroundPlugin, it will blur the background instead of replaicng it with an image. You can optionally pass blurRadius parameter to control the amount of blur in the background. Default blurRadius used is 10.

let virtualBackgroundPlugin = HMSVirtualBackgroundPlugin(backgroundImage: nil, blurRadius: 20)

Change Background

You can use backgroundImage property on HMSVirtualBackgroundPlugin to set a new background image.

let virtualBackgroundPlugin = HMSVirtualBackgroundPlugin(backgroundImage: UIImage(named: "VB1")) virtualBackgroundPlugin.backgroundImage = UIImage(named: "VB2")

Recommendations for supporting older devices

Built-in Virtual background plugin uses Apple's segementation APIs and is supported on iOS 15 and onwards. In our testing, the built-in Virtual background plugin that uses Apple's segementation API performs well on iPhone 13, 12, 11, and XS. It may not perform well on iPhone X, 8, 7, 6 and older devices.

If you would like to support iOS version lower than iOS 15 or want to support older devices, you can write a custom virtual background video plugin. For example you can use Google's MLKit's segementer for replcing background. Below is an example of writing a custom video plugin called 'GoogleSegementor'

class CustomVirtualBackground: HMSVideoPlugin { // MARK: Private private static let DefaultFrameRate = 15 private lazy var rateLimiter: RateLimiter = {.init(limit: 1/Double(CustomVirtualBackground.DefaultFrameRate))}() private var coreBackgroundImage: CIImage? private var blurRadius: CGFloat? private let hmsVideoPersonSegmentationHandler = HMSMLKitPersonSegmentationHandler() // MARK: Public public var backgroundImage: UIImage? { didSet { frameProcessingQueue.sync { if let cgImage = backgroundImage?.cgImage { coreBackgroundImage = CIImage(cgImage: cgImage) } else { coreBackgroundImage = nil } } } } public init(backgroundImage: UIImage?, blurRadius: NSNumber? = nil) { self.backgroundImage = backgroundImage self.blurRadius = blurRadius != nil ? CGFloat(blurRadius!.doubleValue) : nil super.init() // This defer is to make didSet get triggered for backgroundImage from init defer { self.backgroundImage = backgroundImage } } public override func process(frame: CVPixelBuffer) -> CVPixelBuffer { hmsVideoPersonSegmentationHandler.replaceBackground(in: frame, with: coreBackgroundImage, blurRadius: blurRadius ?? 10, shouldSkip: { return !rateLimiter.shouldFeed() }) } } // Helper classes for custom video plugin above // MLKit is from GoogleMLKit/SegmentationSelfie import MLKit class HMSMLKitPersonSegmentationHandler { private static let defaultAttributes: [NSString: NSObject] = [ kCVPixelBufferPixelFormatTypeKey: NSNumber(value: kCVPixelFormatType_420YpCbCr8BiPlanarVideoRange), kCVPixelBufferIOSurfacePropertiesKey : [:] as NSDictionary ] private var extent = CGRect.zero { didSet { guard extent != oldValue else { return } pixelBufferPool = nil } } private var attributes: [NSString: NSObject] { var attributes: [NSString: NSObject] = Self.defaultAttributes attributes[kCVPixelBufferWidthKey] = NSNumber(value: Int(extent.width)) attributes[kCVPixelBufferHeightKey] = NSNumber(value: Int(extent.height)) return attributes } private var _pixelBufferPool: CVPixelBufferPool? private var pixelBufferPool: CVPixelBufferPool! { get { if _pixelBufferPool == nil { var pixelBufferPool: CVPixelBufferPool? CVPixelBufferPoolCreate(nil, nil, attributes as CFDictionary?, &pixelBufferPool) _pixelBufferPool = pixelBufferPool } return _pixelBufferPool! } set { _pixelBufferPool = newValue } } private var ciContext = CIContext() private var previousBuffer: CVImageBuffer? // MARK: Public func replaceBackground(in framePixelBuffer: CVPixelBuffer, with backgroundImage: CIImage?, blurRadius: CGFloat, shouldSkip: ()->Bool) -> CVImageBuffer { guard !shouldSkip() else { return previousBuffer ?? framePixelBuffer } var info = CMSampleTimingInfo() info.presentationTimeStamp = CMTime.zero info.duration = CMTime.invalid info.decodeTimeStamp = CMTime.invalid var formatDesc: CMFormatDescription? = nil CMVideoFormatDescriptionCreateForImageBuffer(allocator: kCFAllocatorDefault, imageBuffer: framePixelBuffer, formatDescriptionOut: &formatDesc) var sampleBuffer: CMSampleBuffer? = nil CMSampleBufferCreateReadyWithImageBuffer(allocator: kCFAllocatorDefault, imageBuffer: framePixelBuffer, formatDescription: formatDesc!, sampleTiming: &info, sampleBufferOut: &sampleBuffer); let image = VisionImage(buffer: sampleBuffer!) image.orientation = imageOrientation( deviceOrientation: UIDevice.current.orientation, cameraPosition: .front) var mask: SegmentationMask? do { mask = try segmenter.results(in: image) } catch let error { print("Failed to perform segmentation with error: \(error.localizedDescription).") return framePixelBuffer } // Get the pixel buffer that contains the mask image. guard let maskPixelBuffer = mask?.buffer else { return framePixelBuffer } // Blend the images and mask. return blend(original: framePixelBuffer, mask: maskPixelBuffer, backgroundImage: backgroundImage, blurRadius: blurRadius) ?? framePixelBuffer } let segmenter: Segmenter = { let options = SelfieSegmenterOptions() options.segmenterMode = .stream options.shouldEnableRawSizeMask = true let segmenter = Segmenter.segmenter(options: options) return segmenter }() func imageOrientation( deviceOrientation: UIDeviceOrientation, cameraPosition: AVCaptureDevice.Position ) -> UIImage.Orientation { switch deviceOrientation { case .portrait: return cameraPosition == .front ? .leftMirrored : .right case .landscapeLeft: return cameraPosition == .front ? .downMirrored : .up case .portraitUpsideDown: return cameraPosition == .front ? .rightMirrored : .left case .landscapeRight: return cameraPosition == .front ? .upMirrored : .down case .faceDown, .faceUp, .unknown: return .up } } // MARK: Private private func blend(original framePixelBuffer: CVPixelBuffer, mask maskPixelBuffer: CVPixelBuffer, backgroundImage: CIImage? = nil, blurRadius: CGFloat) -> CVImageBuffer? { var imageBuffer: CVImageBuffer? let originalImage = CIImage(cvPixelBuffer: framePixelBuffer) var maskImage = CIImage(cvPixelBuffer: maskPixelBuffer) // Scale the mask image to fit the bounds of the video frame. scaleToFit(image: &maskImage, originalImage: originalImage) // Create a clear colored background image. var background: CIImage if let backgroundImage = backgroundImage { background = backgroundImage.oriented(.left) } else { background = originalImage.clampedToExtent() .applyingFilter( "CIBokehBlur", parameters: [ kCIInputRadiusKey: blurRadius, ] ) .cropped(to: originalImage.extent) } // Scale the background image to fit the bounds of the video frame. scaleToFit(image: &background, originalImage: originalImage) // Blend the original, background, and mask images. let blendFilter = CIFilter.blendWithRedMask() blendFilter.inputImage = originalImage blendFilter.backgroundImage = background blendFilter.maskImage = maskImage // Redner image to a new buffer. if let finalImage = blendFilter.outputImage { imageBuffer = renderToBuffer(image: finalImage) } previousBuffer = imageBuffer return imageBuffer } private func renderToBuffer(image: CIImage) -> CVImageBuffer? { var imageBuffer: CVImageBuffer? extent = image.extent CVPixelBufferPoolCreatePixelBuffer(nil, pixelBufferPool, &imageBuffer) if let imageBuffer = imageBuffer { ciContext.render(image, to: imageBuffer) } return imageBuffer } private func scaleToFit(image: inout CIImage, originalImage: CIImage) { // Scale the image to fit the bounds of the video frame. let scaleX = originalImage.extent.width / image.extent.width let scaleY = originalImage.extent.height / image.extent.height image = image.transformed(by: .init(scaleX: scaleX, y: scaleY)) } } class RateLimiter { private let limit: TimeInterval private var lastExecutedAt: Date? init(limit: TimeInterval) { self.limit = limit } func shouldFeed() -> Bool { let now = Date() let timeInterval = now.timeIntervalSince(lastExecutedAt ?? .distantPast) if timeInterval > limit { lastExecutedAt = now return true } return false } }
